Jw36 H рама двойной кривошипной машины

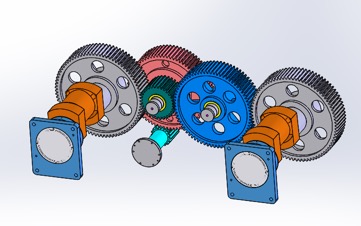

High quality gear transmission system for straight side press

1. Weled type big twin gears, higher strength.

2. Gear grinding

3. High torque oil bath wet type clutch

4. More gears transmission to extend the distance between two crankshafts. Customizable design for bigger table to match big size progressive dies and multi-stations stamping tools.

High precision: better than power press precision standard JIS-I

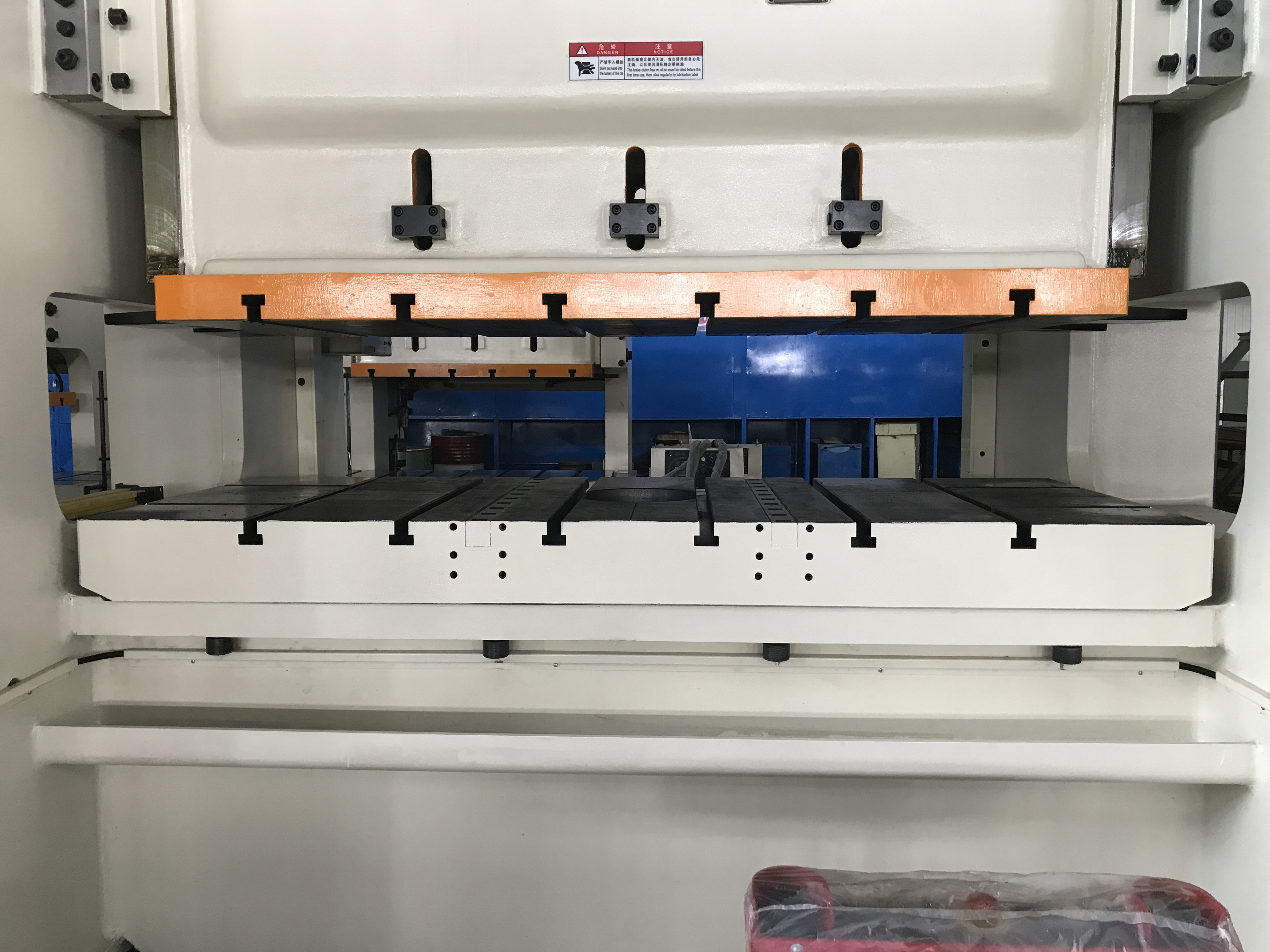

1. Eight faces ram gibs

2. Lengthened bronze slide plates

3. Anti-deviated load bolts for ram guide gap adjustment

4. Press body annealing treatment, machining by high quality milling center

Safety for operation

1. The press machine is standard equip with hydraulic overload protection system

2. Dual safety solenoid valve for the clutch and brake

3. Emmergency stop buttons on T stand and press back

4. Light barriers and die safety block are optional

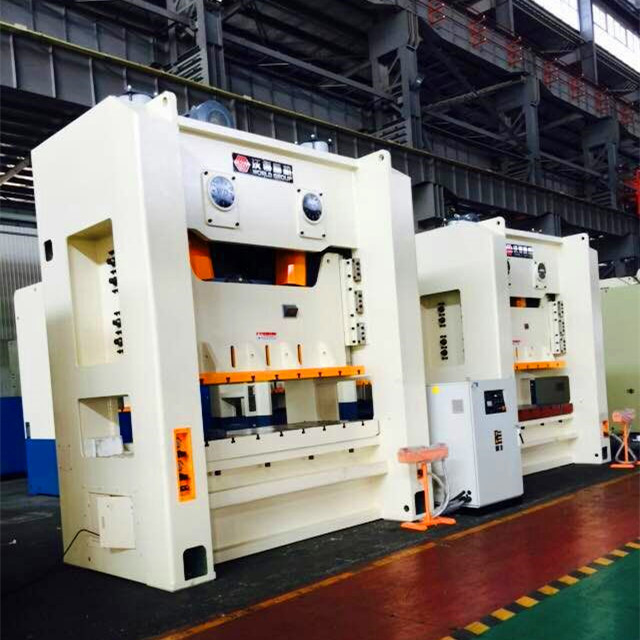

Automatic crank press console

1. Movable T stand with two-hand mushroom buttons and ram adjusting switch

2. LCD touch screen on the HMI

3. Fixed type HMI and movable electric box are selectable

4. Opetator can check the working status from the screen

5. Faults alarm and solutions could be shown on the screen
