Get Discount! Hot sale 125ton C frame press machine

Просмотры:0 Автор:Pедактор сайта Время публикации: 2022-03-30 Происхождение:Работает

Запрос цены

Get Discount Now!

Extra 5% discount, if you place order through this web site and tell us where you get this promotion information.

Only for JH21-125 (125ton C frame press Machine)

World brand JH21 seriesC frame single crank press machineshave the nominal capacity from 25ton to 400ton. The JH21-125 is the most popular model for sale. It has a strong steel welded body. Optimized structure design with high welding quality ensure the strength. Anealing treatment and sand blasting treatment release the welding stress. Careful painting provides a nice appearance.

JH21-125 c frame press machine

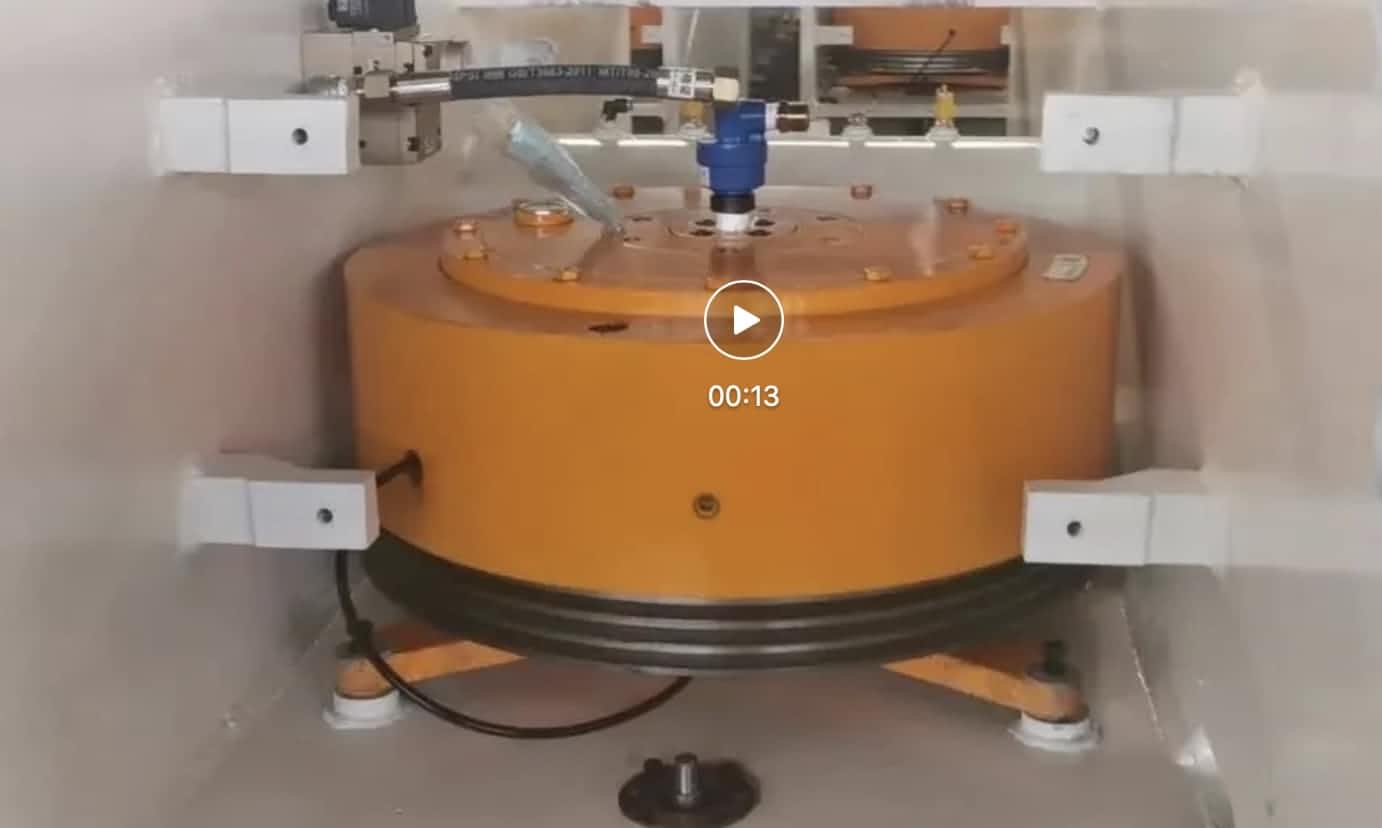

The press is equipped with a combinedwet type pneumatic clutch and brakeОтказ Clutch and brake discs are oil bath inside the flywheel. High quailty seal rings ensure no oil leakage. Dual-safety solenoid valve is interlocked with PLC. The clutch assembly is after temperatuer improving testing and weight balance testing.

press clutch and brake

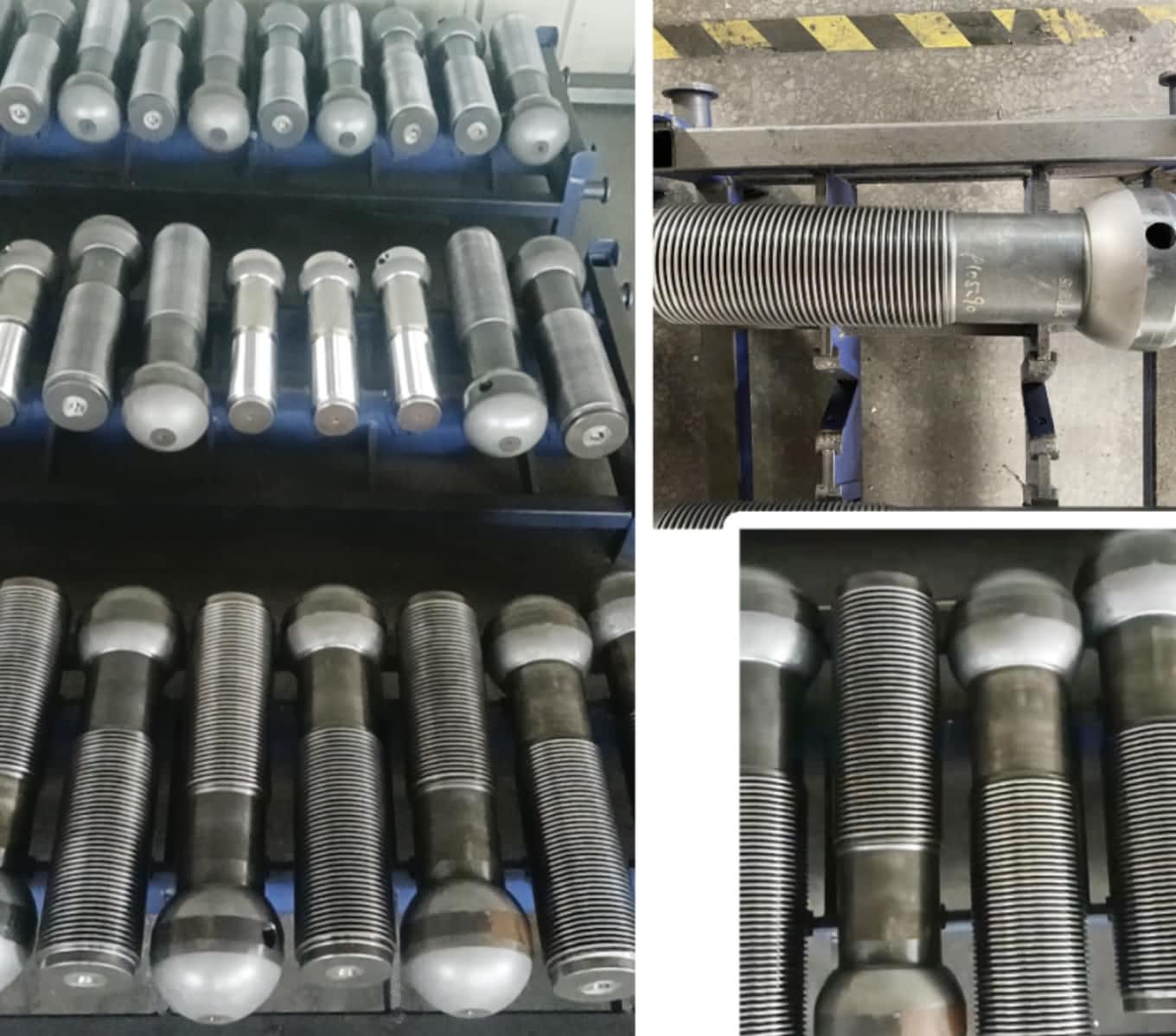

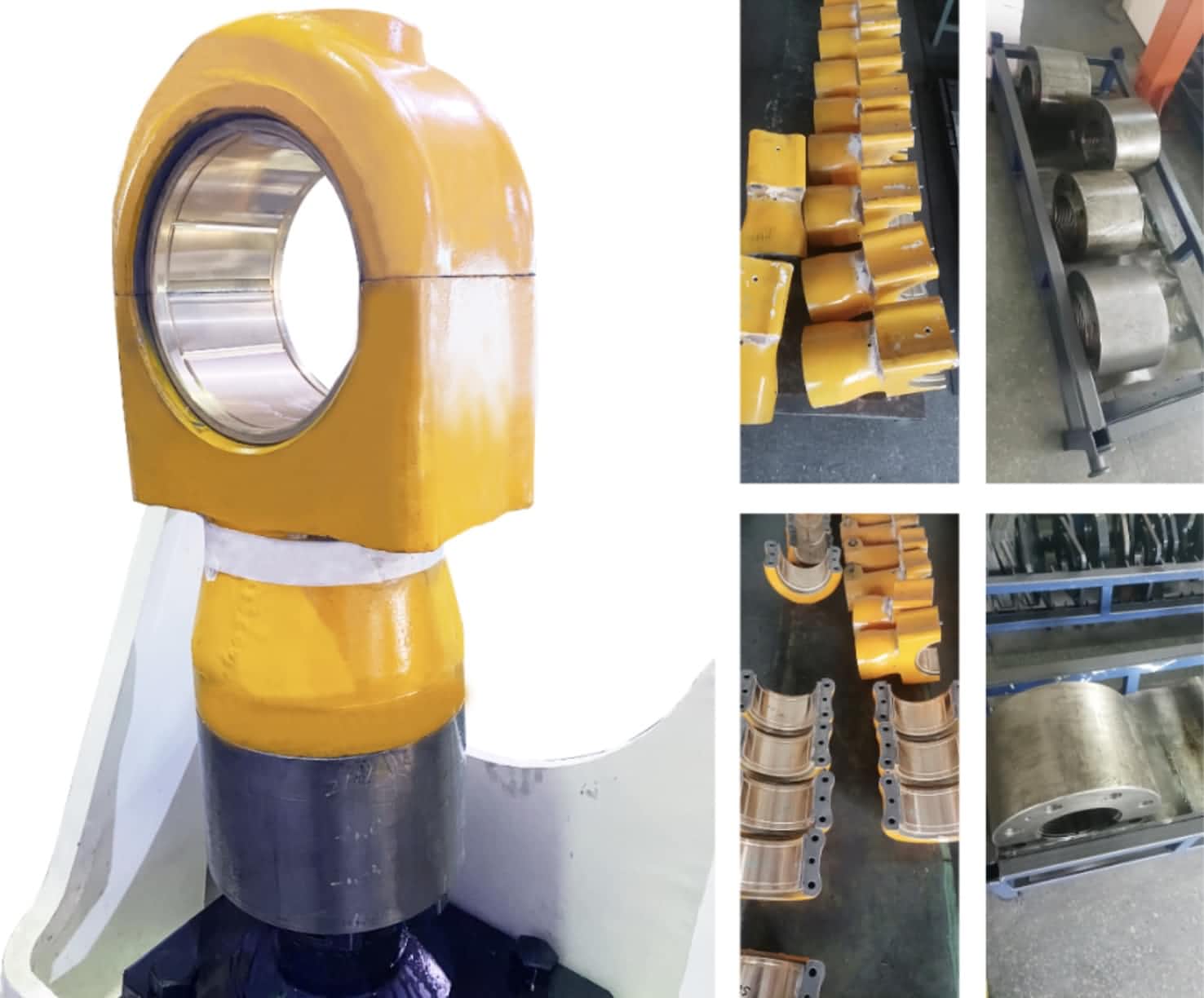

High strength ramconnection rodis three-parts design: upper cover, middle rod and screw-adjust block. The rod is connected with nitrogen-treated ball screw. Smooth ram adjusting. No screws stuck. Bronze bush provides better lubrication and longer service life.

con-rod of press machine

шариковый винт

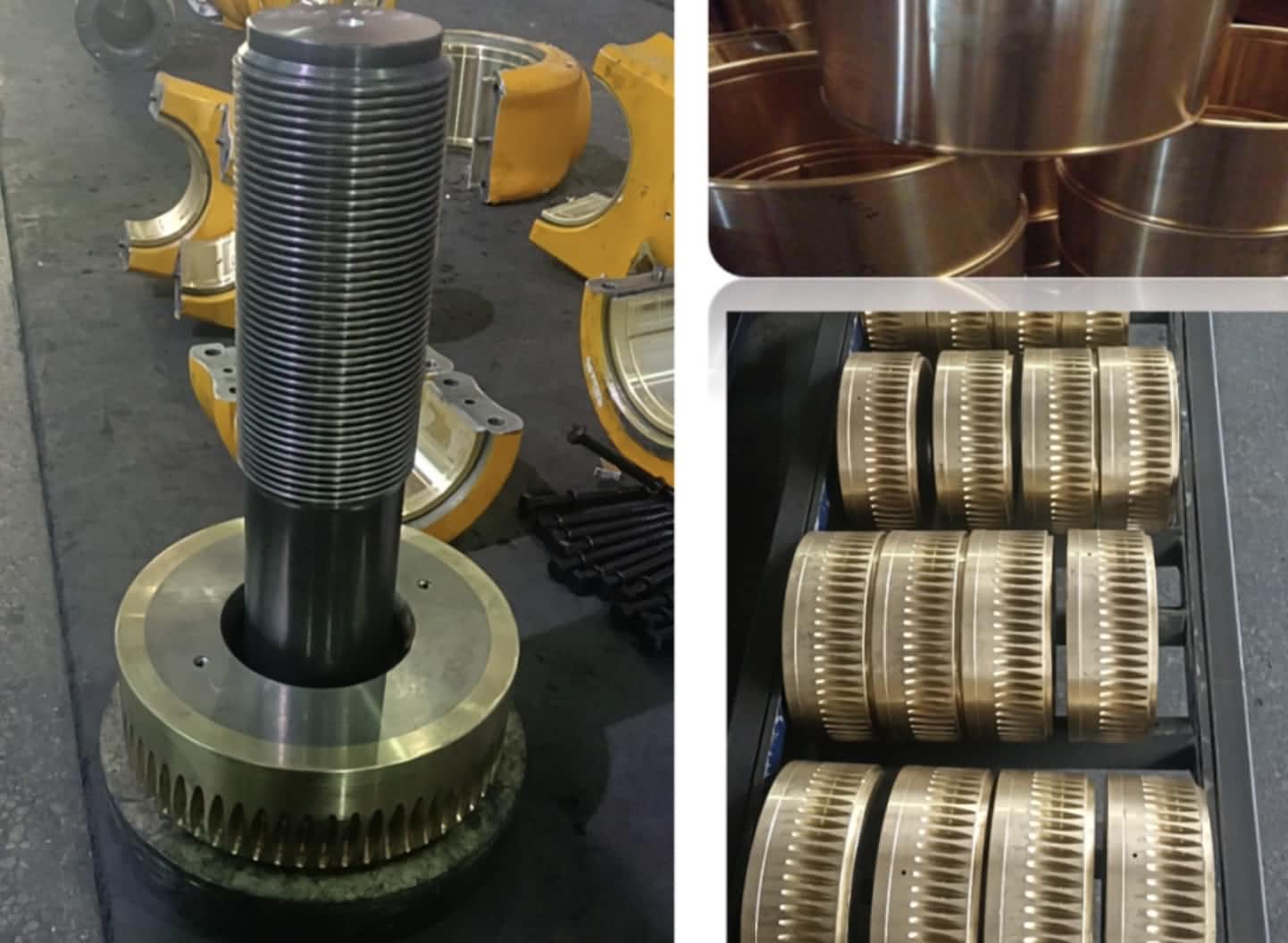

bronze worm gears

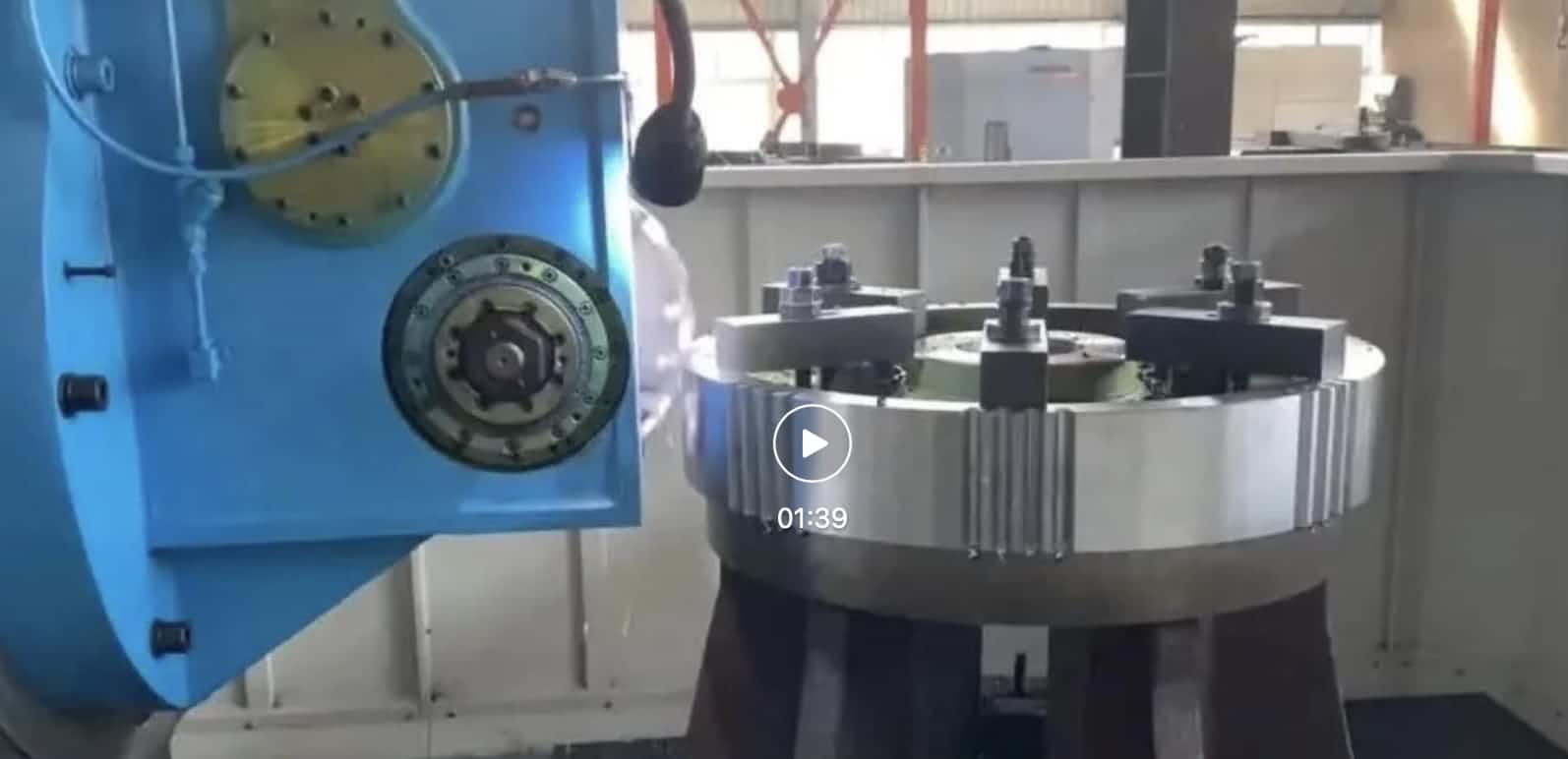

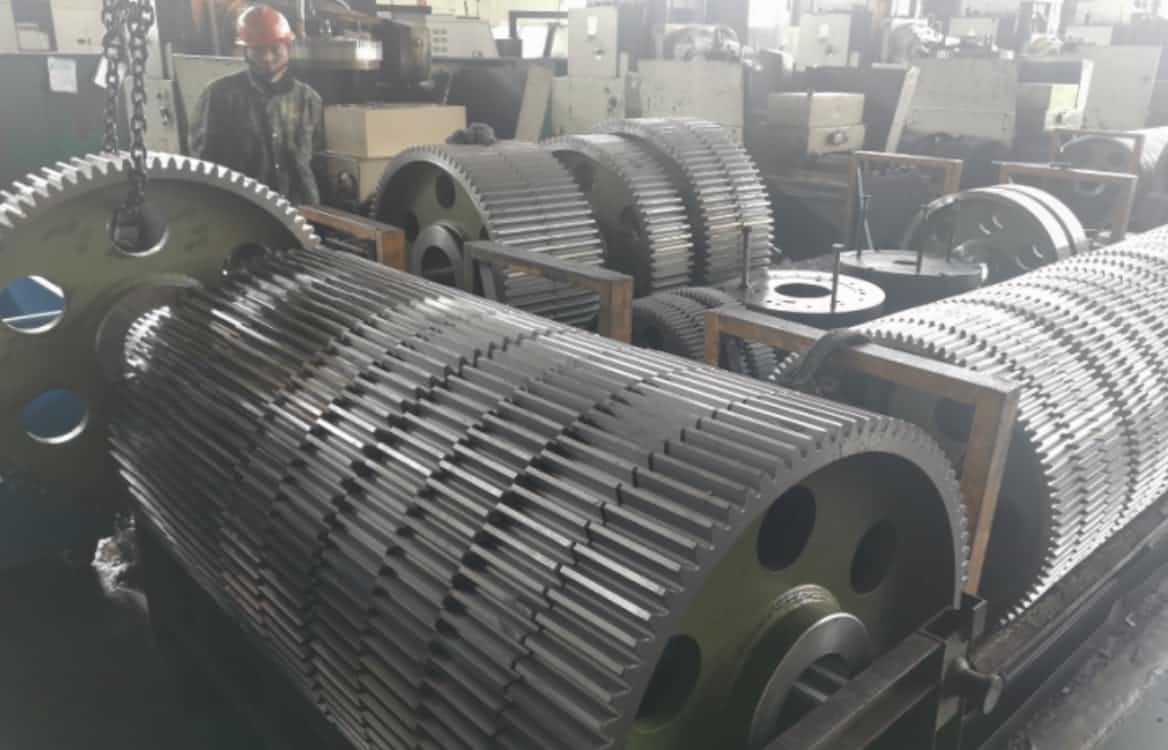

Transmission gears are machined in our own factory. Gear teeth are grinded. Press machine properly runs with low noise.

transmission gear

gear machining

Приложения

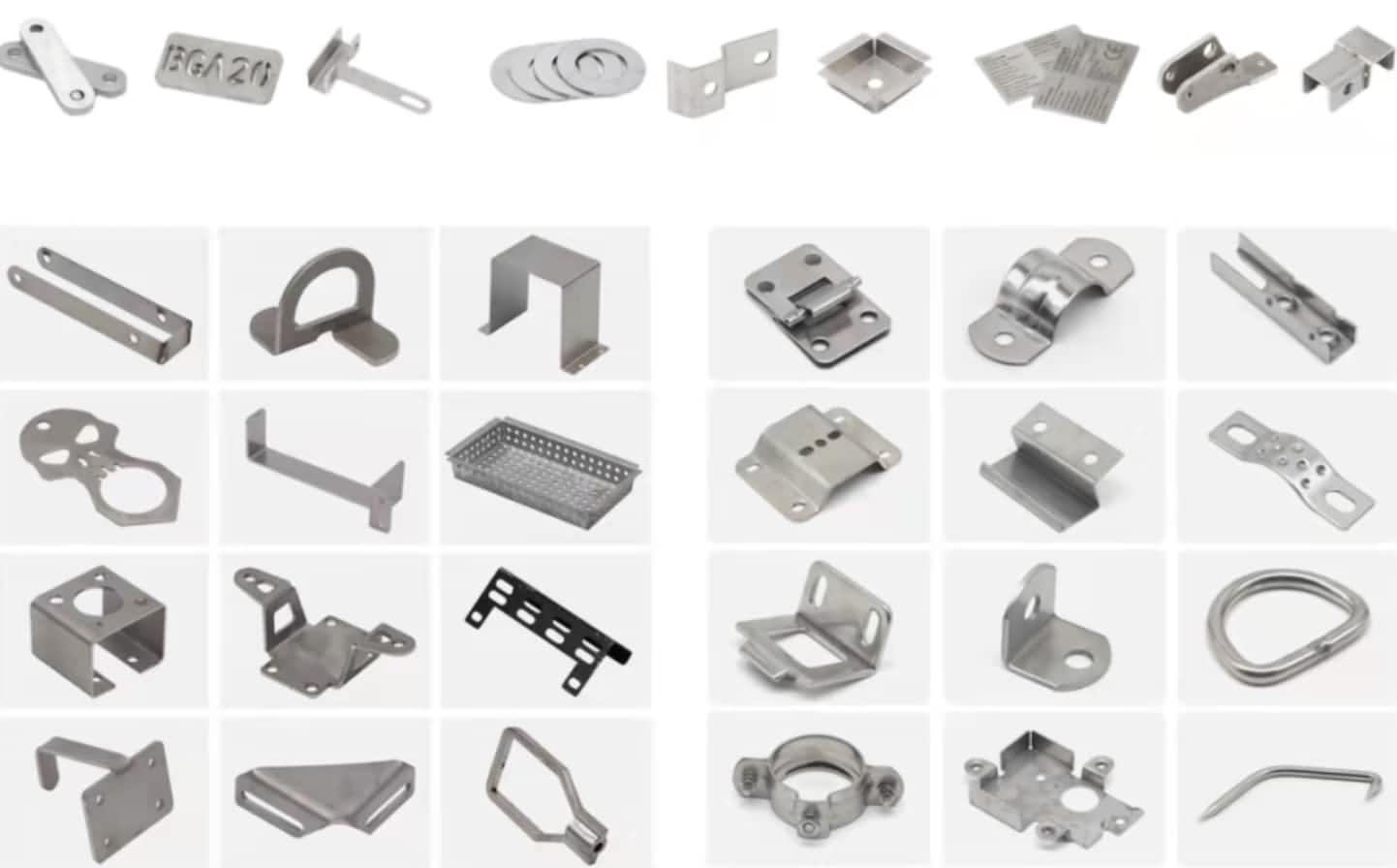

C frame press machine is suitable for sheet metal cold forming. Process includes blanking, cutting, bending, piercing, triming and drawing. It can work with automaticmetal strip feeding machinesto act as a full automatic stamping line.

press machine applications
